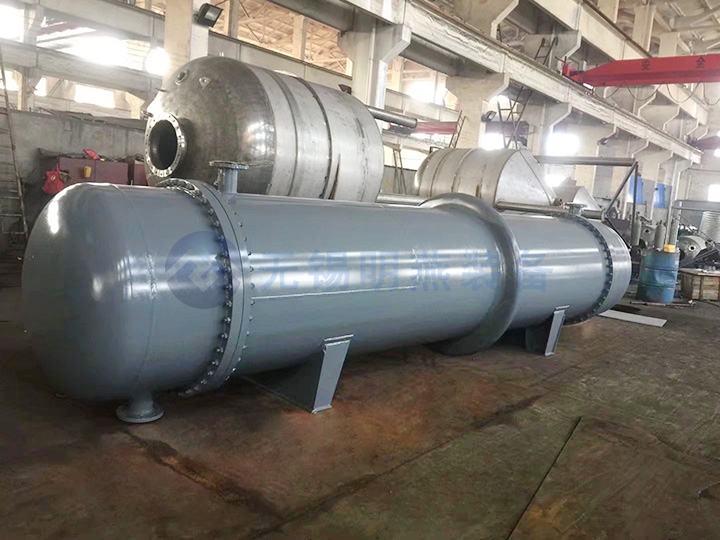

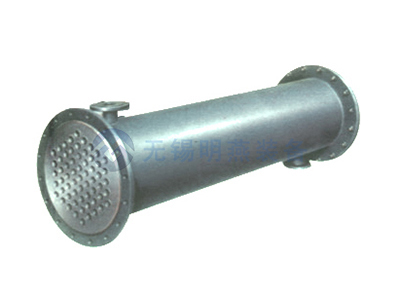

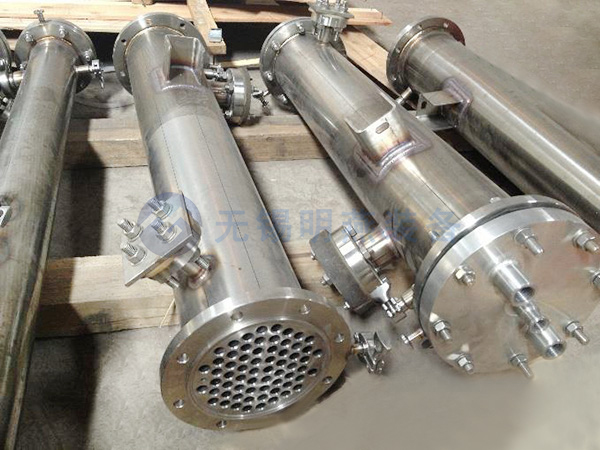

Tubular condenser

Product Description
The tube-and-tube condensers produced by our factory are divided into three types: carbon steel tube-and-tube condensers, stainless steel tube-and-tube condensers, and carbon steel and stainless steel mixed tube-and-tube condensers. They are divided into fixed tube plate type and floating head according to the form. Type, U-shaped tube heat exchanger, according to the structure is divided into single-tube pass, double-tube pass and multi-tube pass, heat transfer area 1m² ~ 500m², can be customized according to user needs.

The main technical parameters

Nominal diameter	Tube number	Tube quantity	Heat exchange area Nominal value/calculated value					Flow m/hr when the flow velocity of the pipe pass is 0.5m/sec		Nominal pressure
			Length of tube（m）					φ25×2.5
			1500	2000	3000	4000	6000	φ25×2
159	Ⅰ	14	1.51.62	22.17	33.27			0.0044/ 0.0049	7.92/ 8.82	0.25
219	Ⅰ	26	3/3.00	4/4.02	6/6.06	8/8.1		0.0082/ 0.0090	14.76/ 16.20	0.6
	Ⅱ	26	3/3.00	4/4.02	6/6.06	8/8.81		0.0041/ 0.0045	7.38/ 8.01	1.0
273	Ⅰ	44	5/5.08	7/5.18	10/10.26	14/13.72	21/20.63	0.0138/ 0.0152	24.84/ 27.36	1.6
	Ⅱ	40	5/4.62	6/6.19	9/9.33	12/12.47	19/18.76	0.0063/ 0.0069	11.24/ 12.42	2.5
325	Ⅰ	60	7/6.93	9/9.28	14/14.00	19/18.71	28/28.13	0.0188/ 0.0208	33.84/ 37.44	0.6
	Ⅱ	56	6/6.47	9/8.66	13/13.05	17/17.46	36/26.26	0.0088/ 0.0097	15.84/ 17.46	1.0
400	Ⅰ	119	14/13.47	18/18.41	28/27.76	37/37.10	55/55.8	0.0374/ 0.0412	67.32/ 74.16	1.6
	Ⅱ	110	13/12.70	17/17.02	26/25.66	34/34.20	50/51.58	0.0173/ 0.0190	31.14/ 34.20	2.5
500	Ⅰ	185			45/4.15	55/57.68	85/86.74	0.0581/ 0.0641	104.58/ 115.38
	Ⅱ	180			40/41.99	55/57.68	85/86.74	0.0283/ 0.0312	50.94/ 56.16
600	Ⅰ	269			60/62.7	85/83.88	125/126.13	0.0845/ 0.0932	152.10/ 167.76
	Ⅱ	266			60/32.05	80/82.94	125/14.72	0.0418/ 0.0461	75.24/ 83.98
700	Ⅰ	379			90/88.41	120/118.17	175/177.71	0.0091/ 0.1313	214.38/ 236.34
	Ⅱ	358			85/83.51	110/111.62	165/167.85	0.0562/ 0.0620	101.16/ 111.60
800	Ⅰ	511			120/119.20	160/159.16	240/239.60	0.1605/ 0.1770	288.90/ 318.60
	Ⅱ	488			115/113.83	150/152.16	230/228.81	0.0767/ 0.0845	138.06/ 152.10
900	Ⅰ	649			150/151.39	200/202.36	305/304.3	0.2039/ 0.2248	367.02/ 404.46
	Ⅱ	630			145/146.96	195/196.44	295/295.40	0.0990/ 0.1091	178.20/ 196.38
1000	Ⅰ	805			185/187.78	250/251.00	375/377.45	0.2529/ 0.2788	455.22/ 501.74
	Ⅱ	792			185/184.75	245/246.95	370/371.36	0.1244/ 0.1374	223.92/ 246.96
